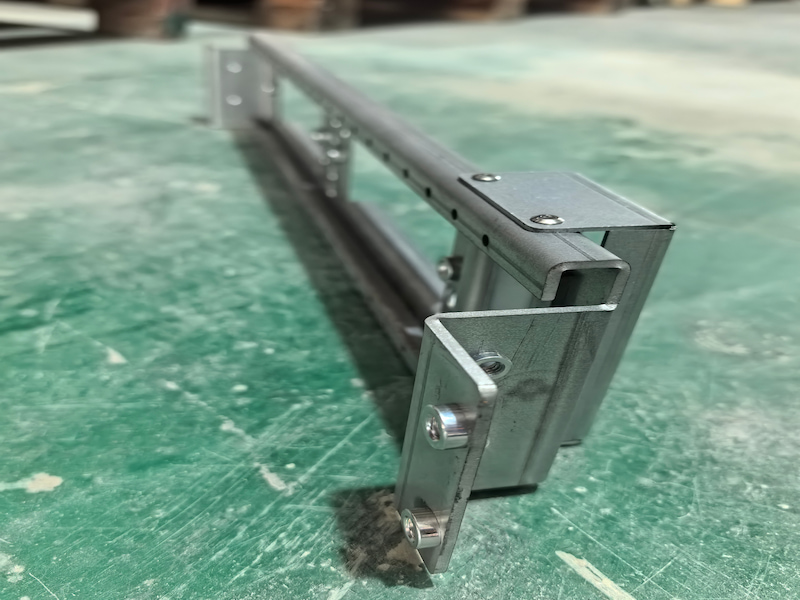

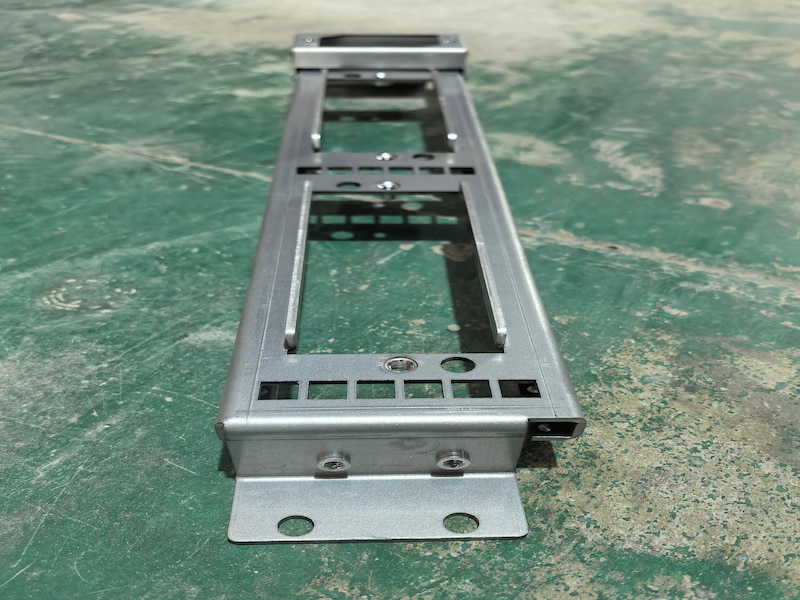

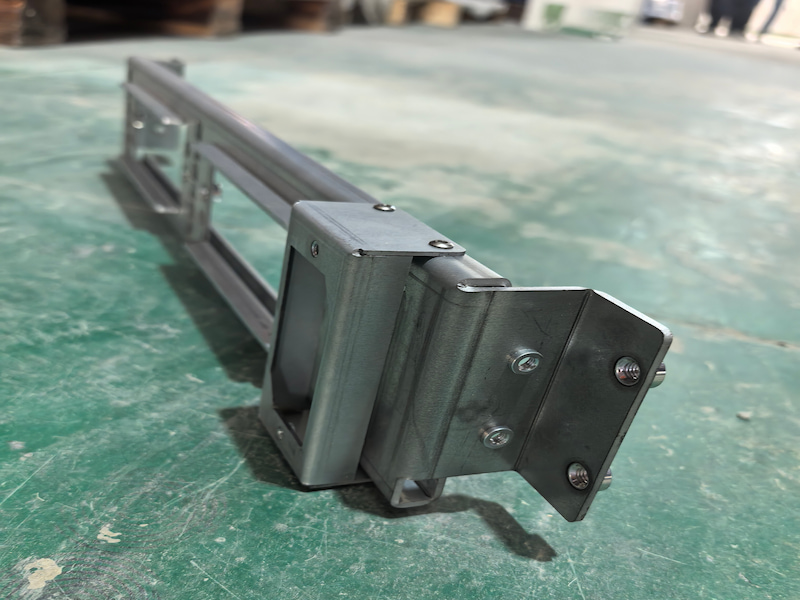

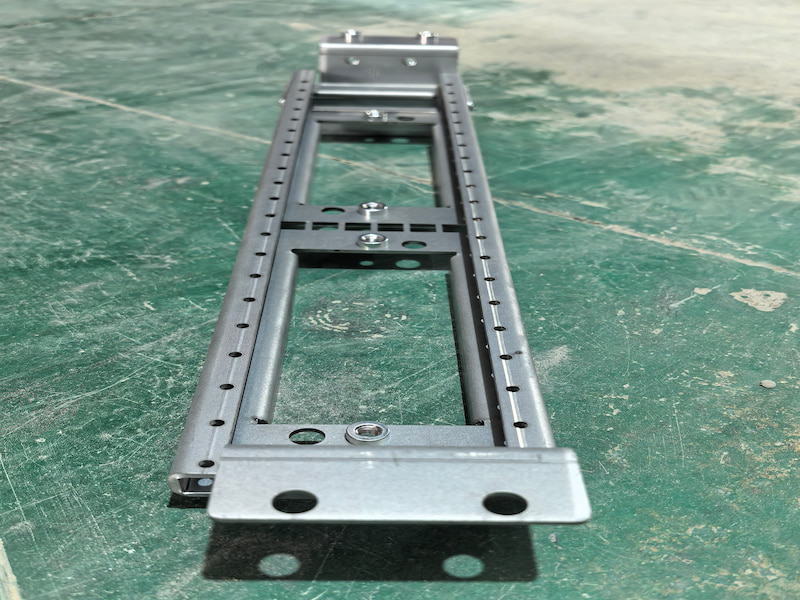

Communication Equipment Connector Brackets are precision sheet-metal support components used within communication cabinets to secure and position various signal connectors, ensuring orderly cable routing and stable connections. Characterized by high structural strength and minimal deformation, they are designed for modular cabinet assembly; they allow for custom positioning of cutouts and support OEM/ODM customization, finding wide application in 5G communication cabinets, data center server chassis, and industrial communication base station equipment.
Item No :
PSMFP-0004Order(MOQ) :
1Payment :
50% T/T in advance, Balance paid again when finishing production and before shipmentProduct Origin :
XiamenColor :
RAL、PANTONE、GSB05···Custom colorsShipping Port :
Xiamen Port,ChinaLead Time :
20-30daysWeight :
As per product's size and thickness and materials.Communication Equipment Connector Bracket
Product Description: Communication Equipment Connector Brackets, Connector Mounting Brackets, Sheet Metal Mounting Brackets for Communication Equipment, Cabinet Connector Support Trays, Signal Connector Positioning Brackets, Equipment Connector Mounting Bases
Model: OEM/ODM
Base Material: Hot-dip galvanized sheet, Al-Zn coated sheet (highly corrosion-resistant base material suitable for humid environments such as server rooms and outdoor base stations; the material itself possesses inherent rust-prevention capabilities)

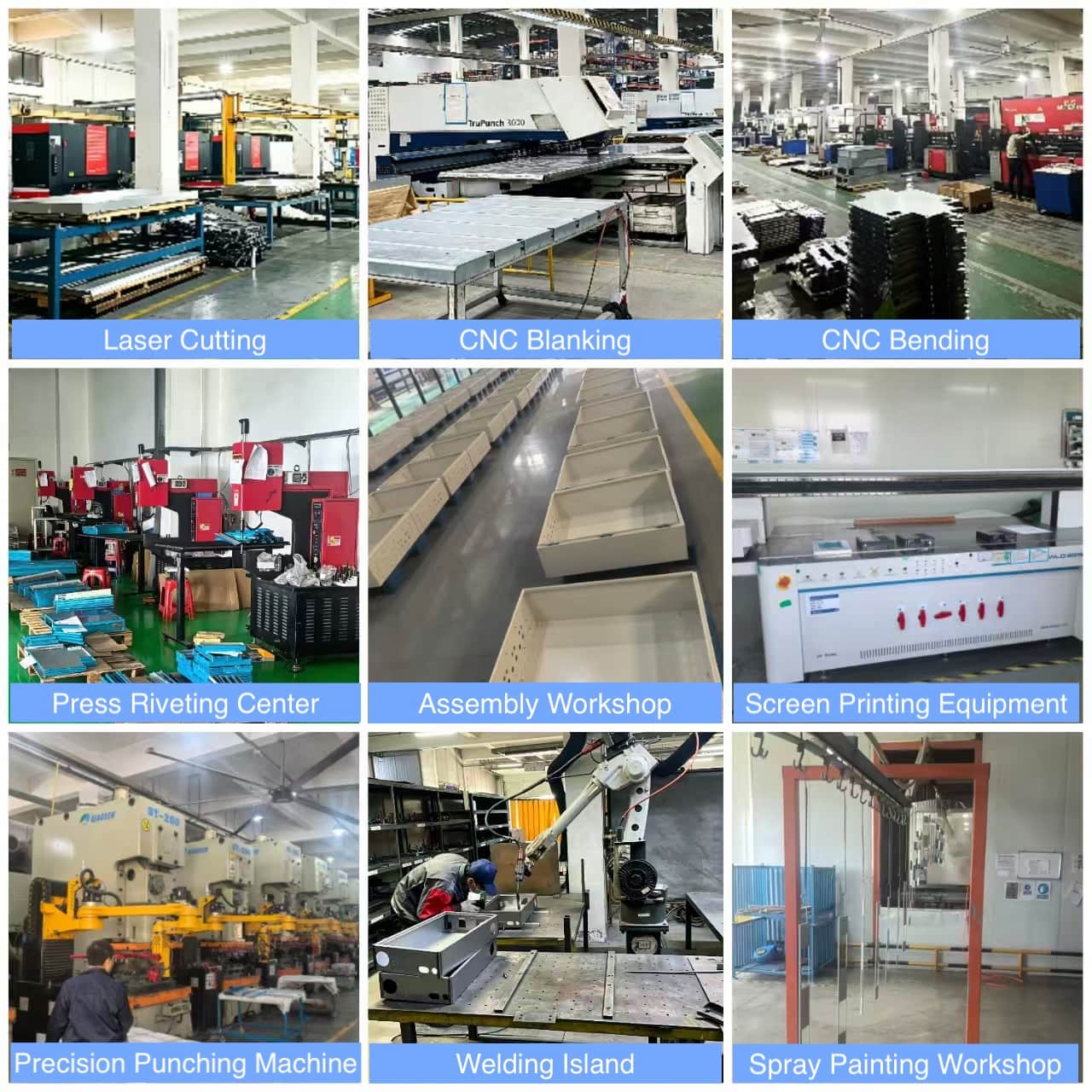

Manufacturing Process:
1. Material Cutting: Cutting sheets to standard dimensions using CNC shearing machines;
2. CNC Punching / Laser Cutting: Machining of elliptical display cutouts, cable entry holes, screw mounting holes, and ventilation holes;
3. Press-fitting (Hardware Insertion): Press-fitting of nuts and studs;
4. Sheet Metal Bending: Integrated bending to form enclosure sidewalls, door frames, and rounded profiles;
5. Blind Riveting Assembly: Fastening via blind rivets to ensure structural integrity of the assembly;
6. Surface Coating/Finishing;
7. Quality Inspection, Cleaning, Packaging, and Shipment;
Accuracy: Dimensional tolerance of appearance length, width and thickness: ±0.3~0.5mm; tolerance of various opening positions: ±0.2mm
Surface treatment:
1. Electrostatic spraying, colors: RAL, PANTONE, GSB05···Custom colors; thick paint film, bump-resistant, outdoor UV-resistant, waterproof and rust-proof
2. Spray paint (liquid paint): The paint film is thin, rich in color, and low in cost; its weather resistance is weaker than that of spray paint, and it is mostly used for short-term indoor use;
Unit price: quoted based on drawings

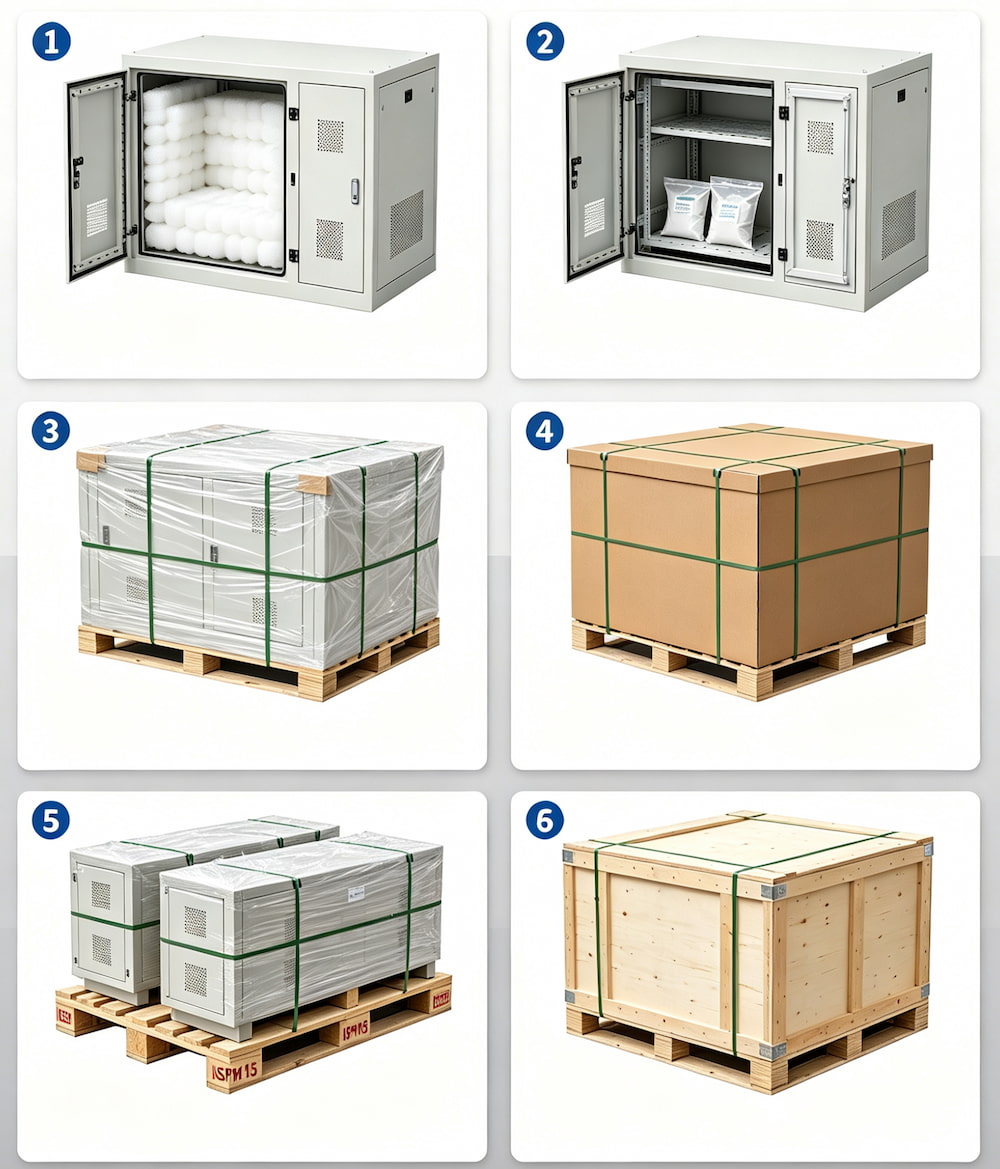

Packaging:
1. The inner wall of the box is fully covered with pearl cotton, and the openings and corners are buffered and protected.
2. Place desiccant inside to prevent shipping containers from condensation, moisture, and rust.
3. Moisture-proof PE waterproof membrane for the whole box
4. Install into thickened export corrugated box + corner wood corner protection reinforcement
5. Large-volume palletization: ISPM15 heat-treated solid wood pallets are fastened with wrapping film
6. Large-scale multi-unit assembly: fumigation-free plywood IPPC wooden box airtight packaging
Logistics: Sea freight, air freight, international express (DHL, FedEx, UPS, TNT), rail transport (primarily China-Europe freight trains), and road transport (short-haul cross-border trade with neighboring countries).
Communication Equipment Connector Brackets are precision sheet-metal support components used within communication cabinets to secure and position various signal connectors, ensuring orderly cable routing and stable connections. Characterized by high structural strength and minimal deformation, they are designed for modular cabinet assembly; they allow for custom positioning of cutouts and support OEM/ODM customization, finding wide application in 5G communication cabinets, data center server chassis, and industrial communication base station equipment.
